Silver Output Transformer

Story of a pair of silver output transformers
Precision CNC Crafted Fiber Glass Bobbin
Wind, wind and wind...
Nice and shiny LEWCOS silver plated magnet wires
Wires are properly aligned for maximum coupling and durability
Measurements to ensure proper matching

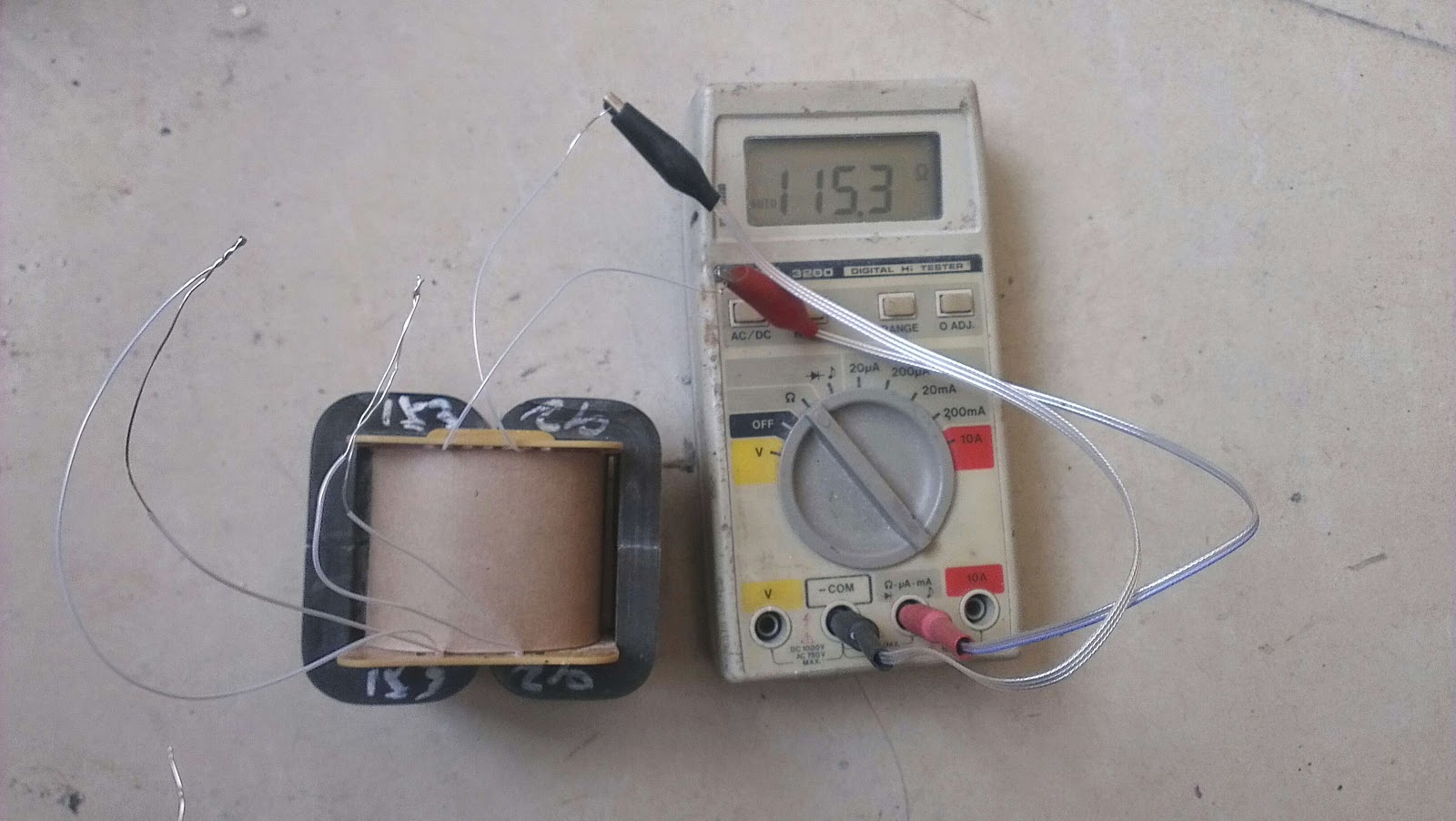

It's matched alright... down to 0.x Ohms - 0.3%!
Stray Capacitance
Leakage inductance
Primary inductance - gapped at 110mA for 300B-XLS
Primary inductance - gapped at 110mA for 300B-XLS - 2% tolerance!

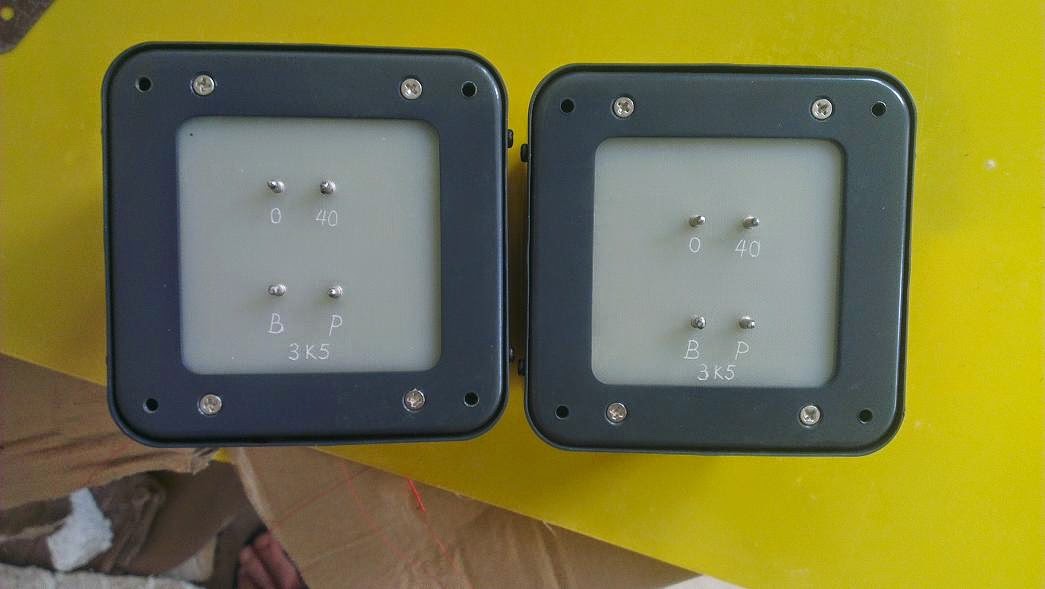

Potted, 3.5K Primary, 40 Ohm secondary - for headphone use
Direct draw of magnet wire to the binding posts for direct signal path

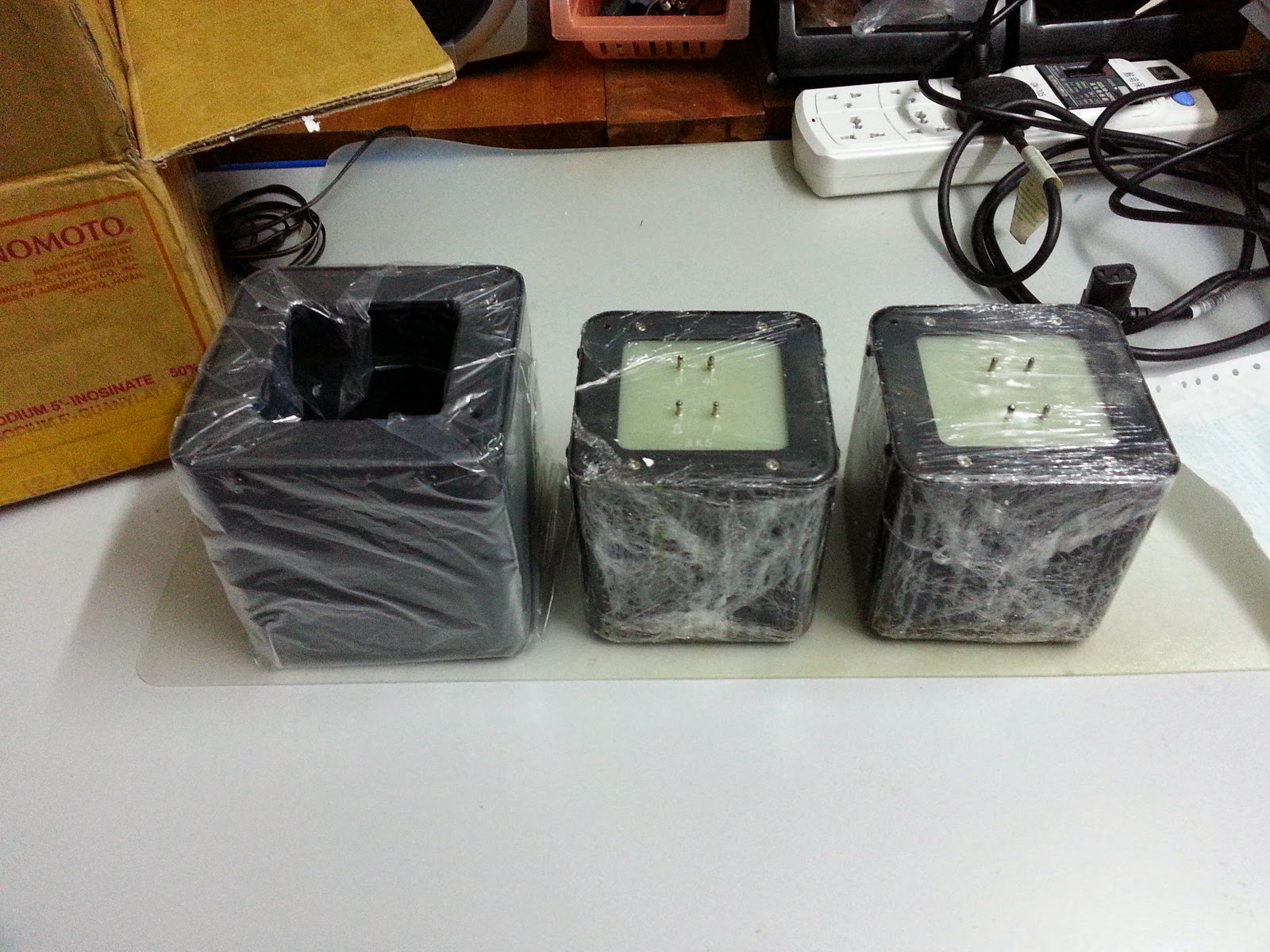

Transformer cover - 1.2mm thick top cover, 1.8mm base plate.

Extra piece of brand new cover for user to pot his power transformer.

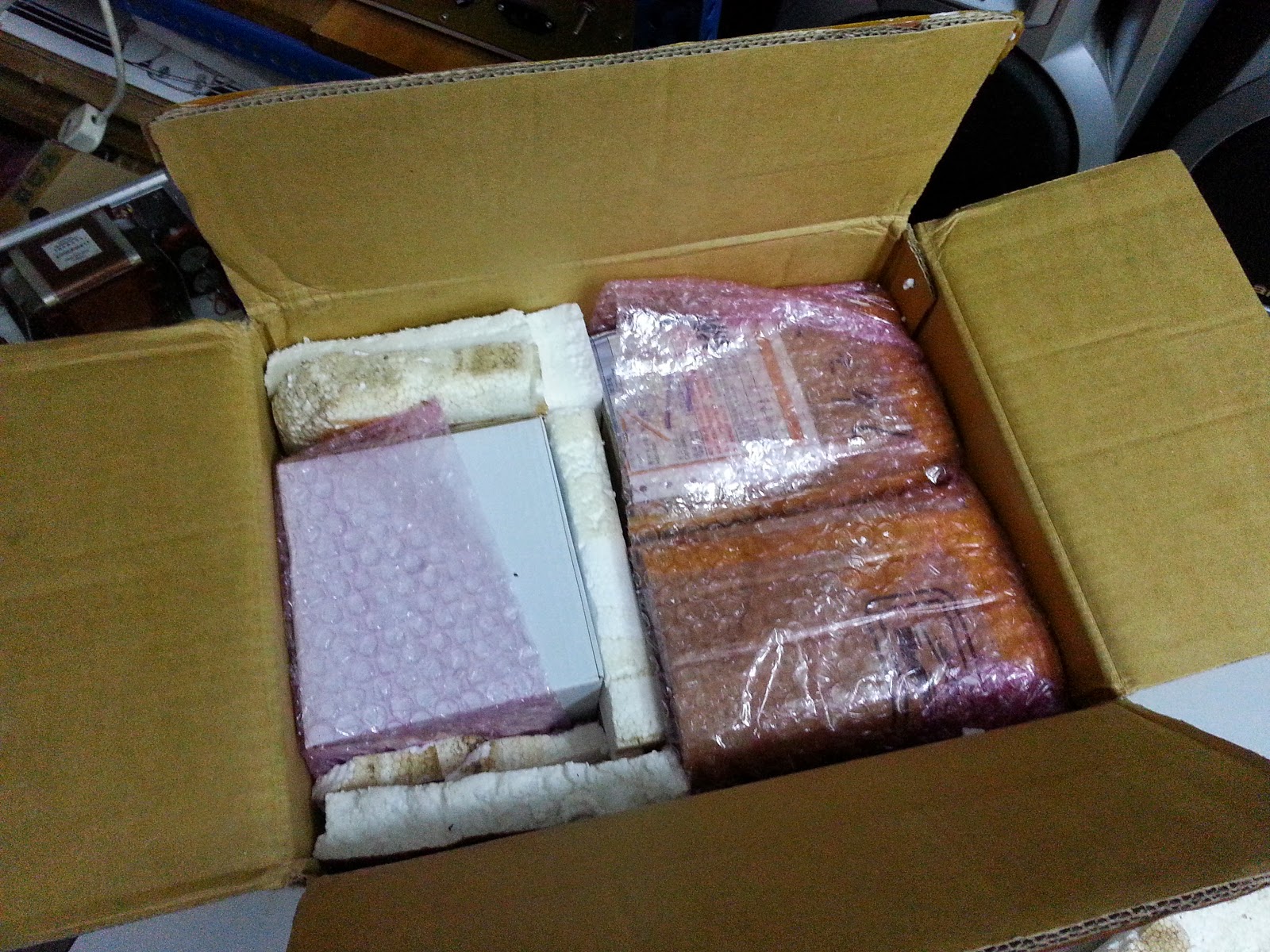

1st layer of packaging - shrink wrapped, covered with thick paper box, and protected by bubble wrap before being boxed in the 1st box.
View before bubble wrap is added.
2nd box!
Hope you enjoyed the show!
