Potting Transformer

Potting transformer - we've received news from our chassis vendor that they've some new transformer case / transformer cover for order. It just so happens that we have two Level 2 - 600W power transformer for solid state amplifier waiting to be potted. We're about to use the standard build transformer cover but this one is just too nice to pass.

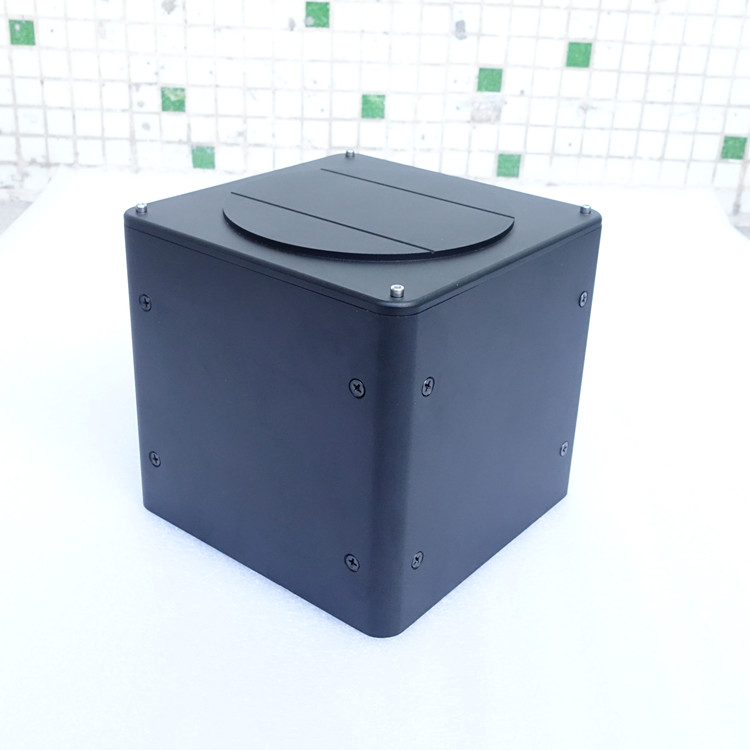

Above is what our casing vendor sent to us - handsome! Casing are very solid as well, and is perfect for our power transformer.



Trying the size of the transformer versus the transformer cover - just nice!



Placing the transformer inside the casing, getting ready to pour potting compound into the casing.



Some pre-work, sealing the joints prior to potting the transformer to prevent compound leakage.


Wallaa! Potting is done. Notice that the magnet wire are first covered with wax cable.


A typical day in factory. Hope you enjoyed the pictures.
