300B Tube Amplifier

J&K Audio Design 300B Tube Amplifier

Here's another lovely 300B tube monoblock amplifier that we've made for a local audio enthusiasts. As what we always do, our designs are always extraordinary and is not done elsewhere. This is a very unique design that fully maximizes the capability of the 300B tubes that uses 5687 as pre-amplification stage and Telefunken EL803S as driver. Here are some highlights:

  • Telefunken EL803S driver for tone and control
  • Low noise LT1083 300B DC filament supply with soft-start function for absolute quietness and safety
  • High torque, critically damped, tube rectified pseudo choke input B+ power supply for excellent low frequency response and driver control
  • Stepped attenuator with Dale resistors - super accurate and stable imaging
  • Grid choke application for pre to driver stage - wide bandwidth low frequency extension
  • Carefully selected high grade components - optimized tone and body
  • Special tweaks at mains input for low noise operation - super dark clean background
  • Z11 overspec power transformer and Z11 choke - super dark clean background
  • Cobalt SiFE 40W double C core output transformer - tuned for optimized mids to low bass response
  • Teflon and high grade ceramic tube sockets
  • 5X4G and 5U4G interchangeable tube rectification
  • 3MM turret board for component mounting - absolute vibration control for components
  • Full aluminum, rigid chassis - non-magnetic and rust proof with 5MM front plate
  • J&K proprietary grounding scheme - zero hum and noise even if ear is placed near high sensitivity speakers (ex: Zu Audio Soul Superfly with 100dB/w/m sensitivity)
  • J&K proprietary tuning for mid to low frequency resolution and extension

300B Direct Heated Triode Amplifier

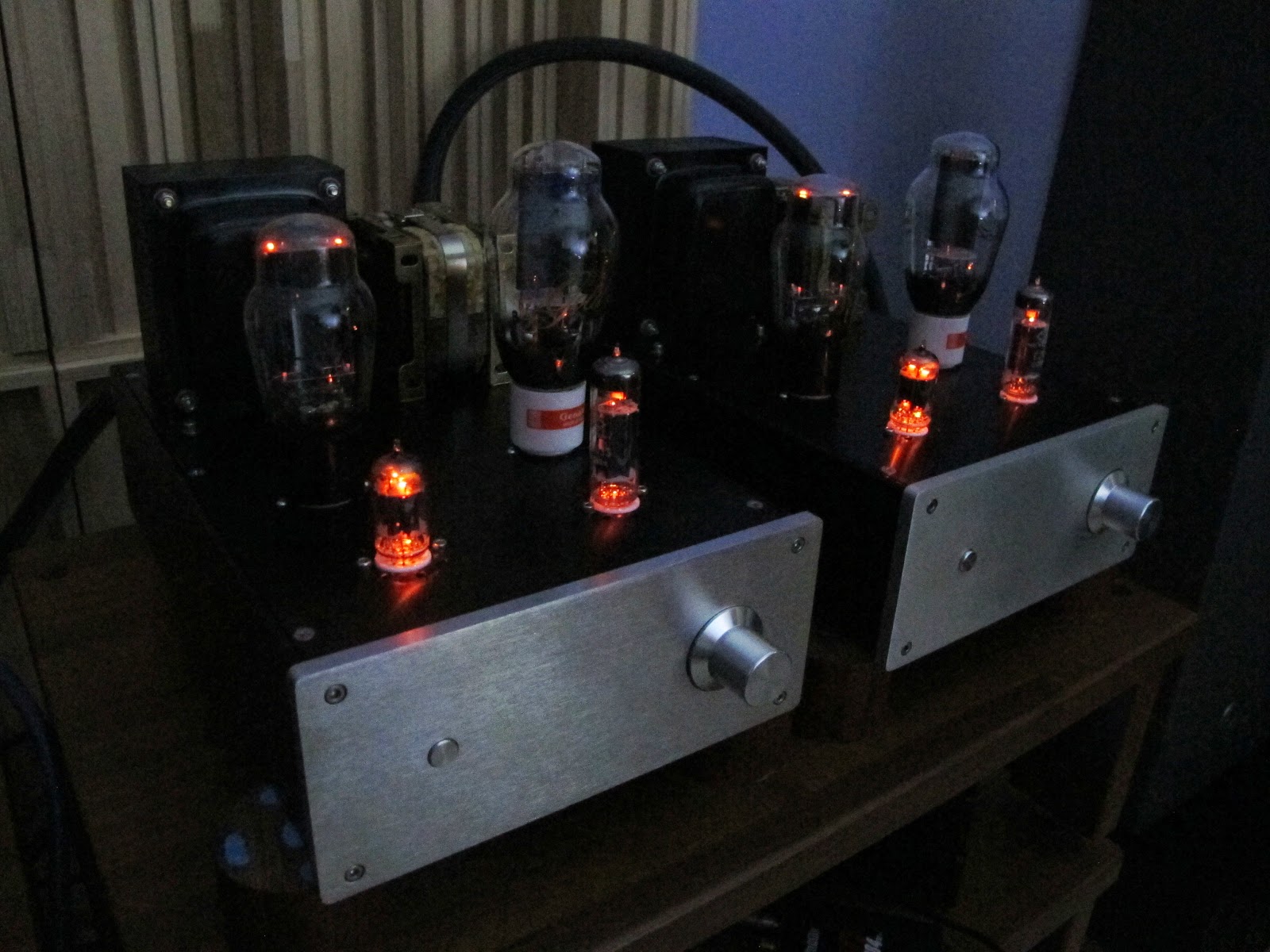

300B Monoblock Tube Amplifier
300B Monoblocks
300B Triode Amplifier
300B Class A Amplifier

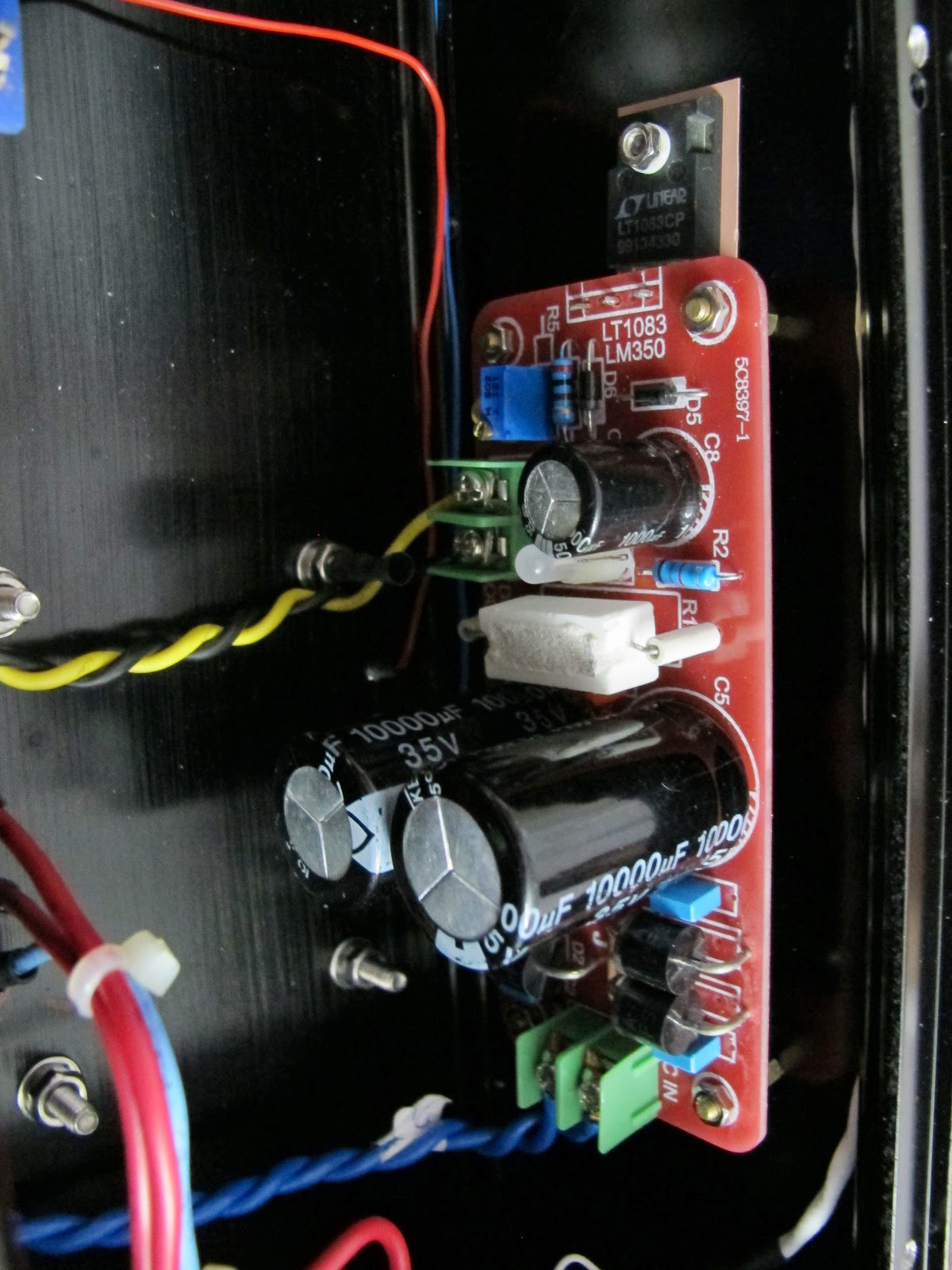

Low noise 300B DC filament supply with soft start
Genalex 300B Tube
Telefunken EL803S
Telefunken Pentode
300B Amplifier Construction

J&K Audio Design
25/11/2014
